How to Choose a Bifold Door Hinge That Fits
A folding door that catches, hangs unevenly or feels loose can turn a simple daily task into a small nuisance. A worn hinge may be part of the problem. Yet replacing it with a hinge that looks roughly similar can leave you with the same fault, or a new set of holes in the wrong place.
The PRIME-LINE N 7273 is a non-mortise bifold door hinge intended for most wood bifold doors. Its main feature is straightforward. It mounts on the door edges without needing a chiselled recess. Before choosing it, check that this mounting style matches your door and that the listed size suits the existing fitting.
Start by finding the cause
Watch the door as it opens and closes. Look for movement around the hinge screws, damage to the hinge itself or panels that rub together. Move slowly and avoid forcing a door that catches.
A hinge is only one part of a folding door assembly. Problems elsewhere can also affect how the panels move. A new hinge will not necessarily correct an issue with the track or other supporting hardware.
If the hinge appears sound but the whole door sits unevenly, pause before ordering. Finding the actual cause helps you choose the right repair. It also avoids replacing a useful part while leaving the fault untouched.
What this hinge offers
The N 7273 is a door-mounted hinge with four mounting holes. The supplier lists its dimensions as 25 mm long by 76 mm wide and its weight as 46.5 g. The listed unit count is one, and fasteners are included.
The specifications describe alloy steel with a nickel-plated finish. That gives you useful details to compare with the original fitting, but it does not establish a load rating or outdoor suitability.
Think of this as a specific replacement part rather than a complete door repair kit. The listing does not describe tracks, pivots or handles as included components. If your repair needs those items too, identify them separately.
How a non-mortise hinge works

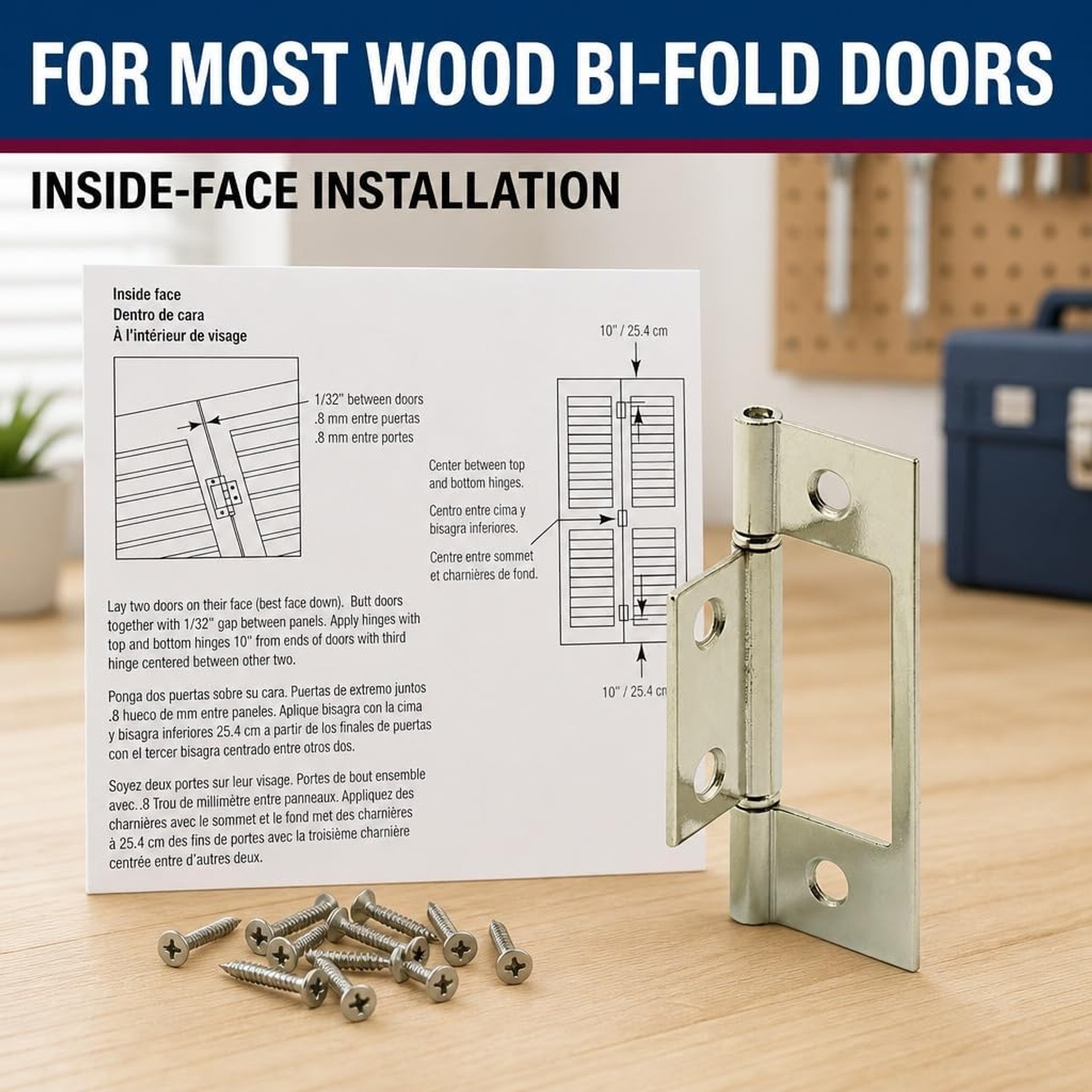

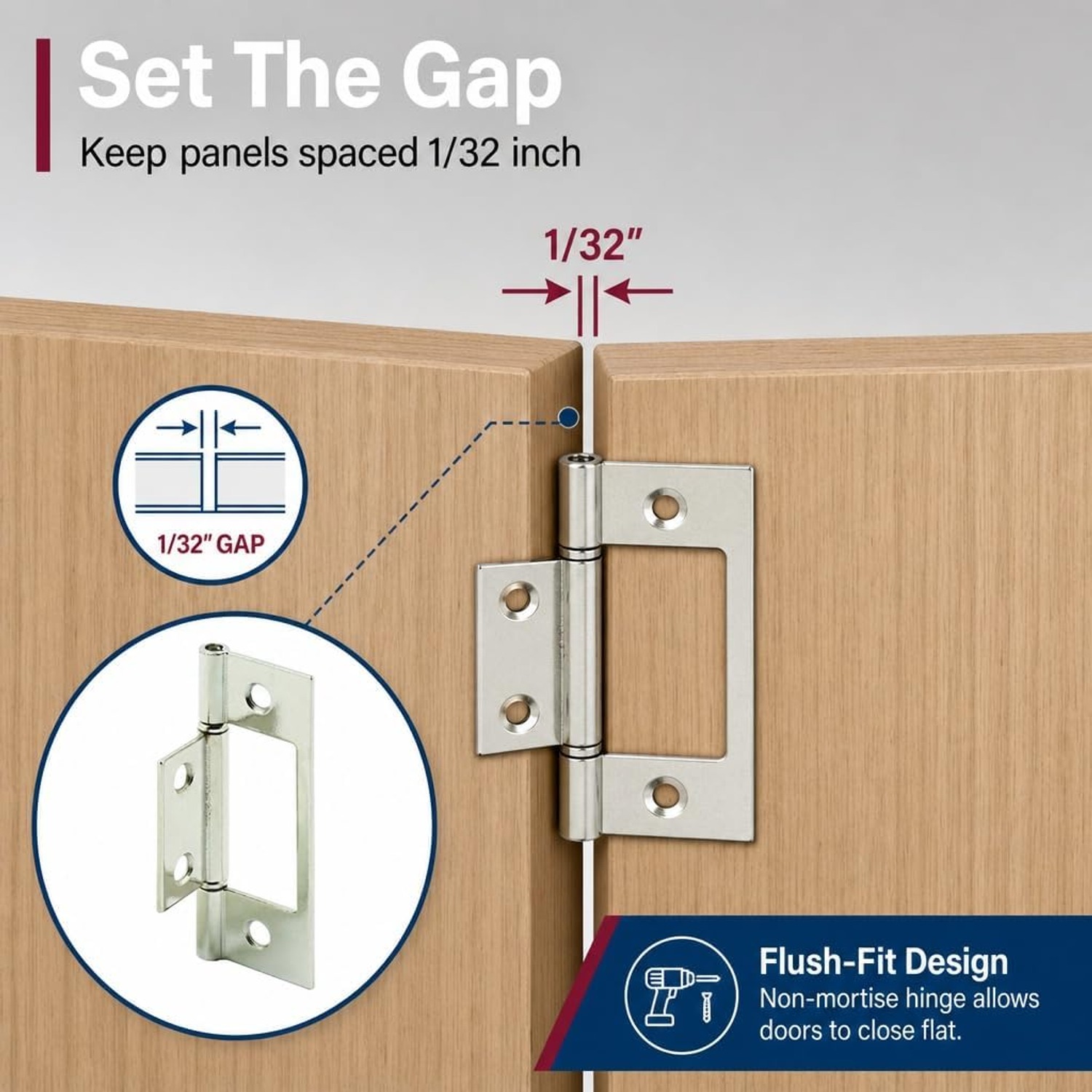

A traditional mortised hinge sits in a recess cut into the door or frame. A non-mortise design avoids that cutout in the wood. This model uses a cutout in the hinge itself to allow mounting on the door edges.
That can make a like-for-like replacement simpler because there is no new mortise to chisel. It does not remove the need for careful positioning. The hinge still needs to sit correctly so the panels have room to fold.
If your current door has recessed hinges, do not assume a non-mortise replacement will suit it. Compare how the existing leaves sit and how the panels meet when closed. A different mounting style can change the fit even when the overall dimensions look close.
Measure before choosing

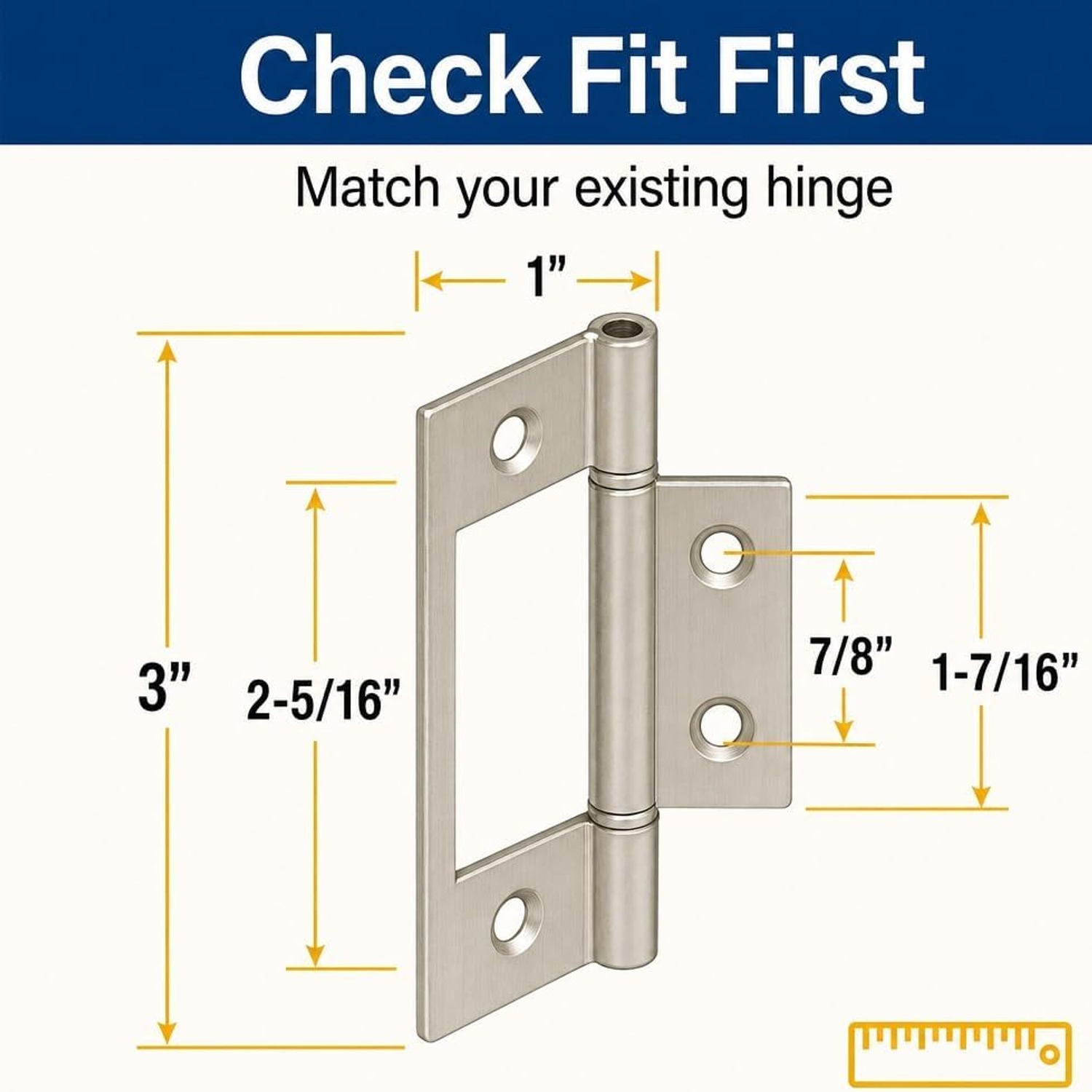

For a wood bifold door hinge, overall size is a useful starting point. Measure the original fitting and compare it with the listed 25 mm by 76 mm dimensions. Check the orientation against the product images rather than relying on the numbers alone.
Next, inspect the fixing layout. This hinge has four mounting holes, but exact hole spacing is not provided. Two hinges can have the same hole count and still use different fixing positions.
Take clear photos of the old hinge while it is fitted. Include the door edge, the way the leaves meet and the surrounding gap. Those photos can help when comparing replacement options or asking for advice.
Do not overlook the condition of the wood. Correct dimensions will not solve a fixing problem if the mounting area is split or badly worn.
Check the details that are not listed
Some useful compatibility details are not listed by the maker. These include hinge thickness, supported door thickness, load capacity and exact hole spacing. There is also no stated opening angle.
Those gaps matter more for some repairs than others. A close match to an existing N 7273 fitting is a different decision from fitting unfamiliar hardware to a heavy custom door.
If a missing measurement affects your choice, seek confirmation before buying. Guessing is rarely worthwhile when a small difference can affect panel clearance. The best bifold hinge replacement is one that matches the door's needs, not simply the nearest-looking shape.
Who this hinge may suit
This model is worth considering for a compatible wooden folding door, including wardrobe applications. It may suit a repair where the existing hinge is damaged and the door edges remain sound.
It is also an option to compare when you want non-mortise door hardware rather than a hinge that needs a recess. The key is matching the existing arrangement, not assuming the design suits every wooden panel.
The stated use does not confirm suitability for glass, metal or exterior doors. Nor does it confirm use on unusually heavy panels. For those situations, look for hardware with clear guidance for the door material and intended load.
Match the finish sensibly
The supplier describes a nickel finish over steel. If the hinge will be visible, compare it with nearby fittings as well as the hinge on the other side of the door.
Product photos are useful for judging the general appearance, but screen settings and lighting can affect colour. A nickel plated door hinge may not look identical to an older fitting that has seen years of handling.
Fit should come first. A close colour match cannot make up for an unsuitable hole pattern or poor clearance. Once the mechanical details match, consider whether the finish works with the rest of the door hardware.
Plan the installation
Before removing any hardware, make sure the panels are supported. A folding door can shift when a hinge is loosened, making alignment harder and creating a risk of damage.
Keep the original fasteners and hinge together while checking the replacement. They provide a useful reference for the old fixing positions, even if you do not plan to reuse them.
The supplier recommends a 3/32-inch drill bit for pilot holes in wood to help avoid splitting. Plan the drilling depth carefully for your door. Fastener dimensions are not listed by the maker, so check the supplied hardware before starting.
If you are unsure about supporting the panels or drilling accurately, ask someone with suitable repair experience to help.
Fit carefully and test gently

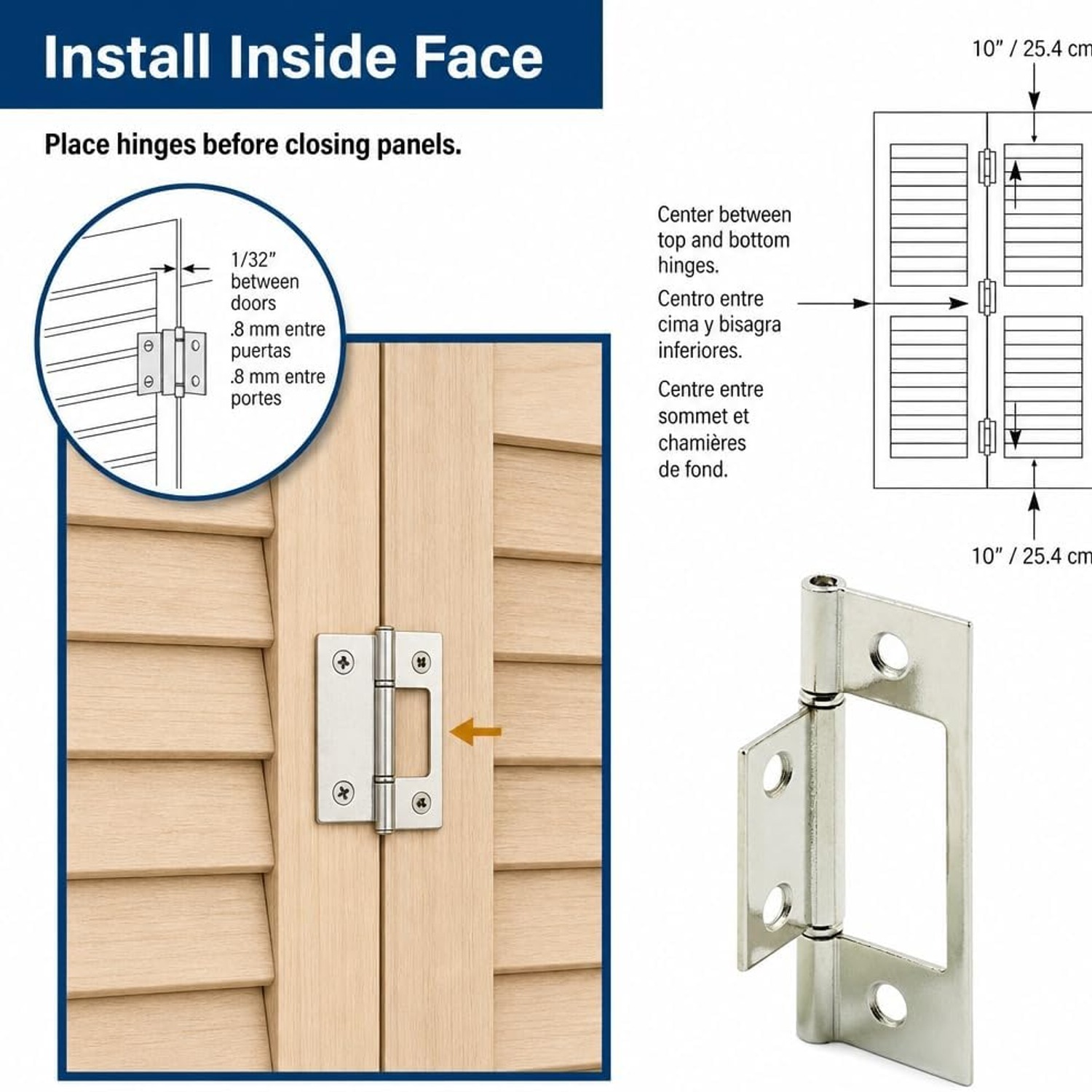

Position the hinge before committing to new holes. Check that it sits as intended on the door edges and that the leaves line up with the panel arrangement.
Existing screw holes are only useful if they match and still hold securely. Do not assume an old hole is suitable because it is close to the new fixing position. Damaged wood may need a proper repair first.
After fitting, move the door slowly through its normal folding motion. Watch for rubbing or movement at the fixings. Stop if the panels bind rather than trying to pull them through the tight spot.
A good fit should not depend on forcing the door. Recheck positioning and the wider door assembly if the movement is still wrong.
Keep care simple
Use a soft cloth to remove dust and handling marks. Dry the hinge after cleaning, and avoid abrasive pads or harsh cleaners that could damage the plated surface.
Check the fixings from time to time, especially if the door starts to feel loose. Small changes in movement are worth investigating before they become a larger repair.
The maker does not specify a lubricant or maintenance schedule. If the hinge becomes stiff, first inspect for rubbing, loose screws or alignment problems. Adding a product without checking the cause may leave the underlying issue unresolved.
Check quantity, delivery and warranty
The listed unit count is one. Count the hinge positions involved in your repair so you do not mistake this listing for a full-door set.
Delivery timing is not listed by the maker in the product record. Check the current delivery information for your destination before planning the work. It is sensible to have the replacement ready before taking a working door apart.
The supplier lists a one-year warranty against manufacturing defects, with exclusions for installation damage, user-related damage, abnormal conditions, misapplication and abuse. Return terms are separate, so read our returns policy before purchase and before making changes to the part.
The short version
The PRIME-LINE N 7273 is a nickel-plated steel, non-mortise hinge intended for most wood bifold doors. It has four mounting holes, listed dimensions of 25 mm by 76 mm and included fasteners.
Choose it by comparing the existing hinge, not by appearance alone. Confirm the mounting style, check the door edges and ask about any missing measurements that matter to your repair. A little care before ordering can save extra work when it is time to fit the replacement.
